2024 Renegade RV XL | Super C Motorhome

HIGH-END THAT MAKES A STATEMENT

The Renegade XL is a Super C RV that’s ready for tomorrow’s next great adventure. With porcelain tiled floors, beautiful solid surface countertops and hardwood maple cabinetry, the Renegade XL gives you the ability to travel in style while allowing you to have all the comforts of home. Experience an unparalleled level of craftsmanship, along with integrated technology that prepares you for the journey ahead.

Renegade XL featured on Autoevolution

Length

43' 6"-44' 11"

Towing Capacity

30,000 lbs

Bathrooms

1-2

View All Specs

Download Brochure

Exterior Paint Options

ECLIPSE

MERIDIAN

NEBULA

SOLSTICE

ZENITH

POLARIS

TUNDRA

ECLIPSE

MERIDIAN

NEBULA

SOLSTICE

ZENITH

POLARIS

TUNDRA

ECLIPSE

MERIDIAN

NEBULA

SOLSTICE

ZENITH

POLARIS

TUNDRA

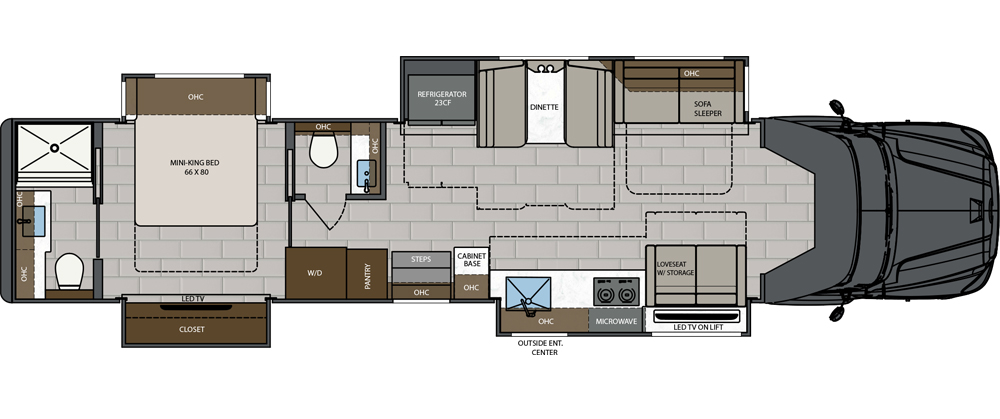

Available Floorplans

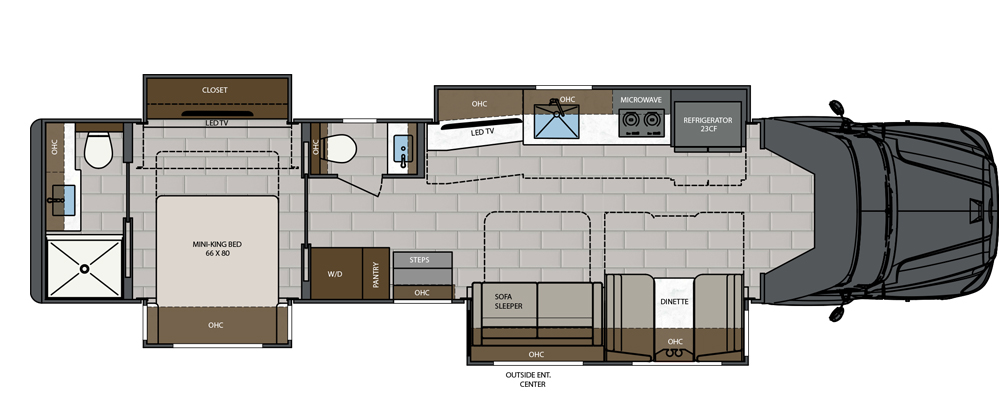

X43DB

X45BBC

X45DBM

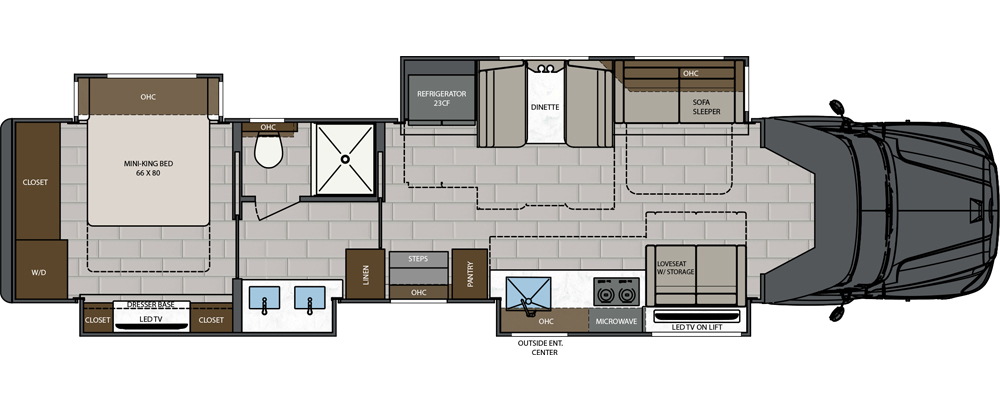

X45QS

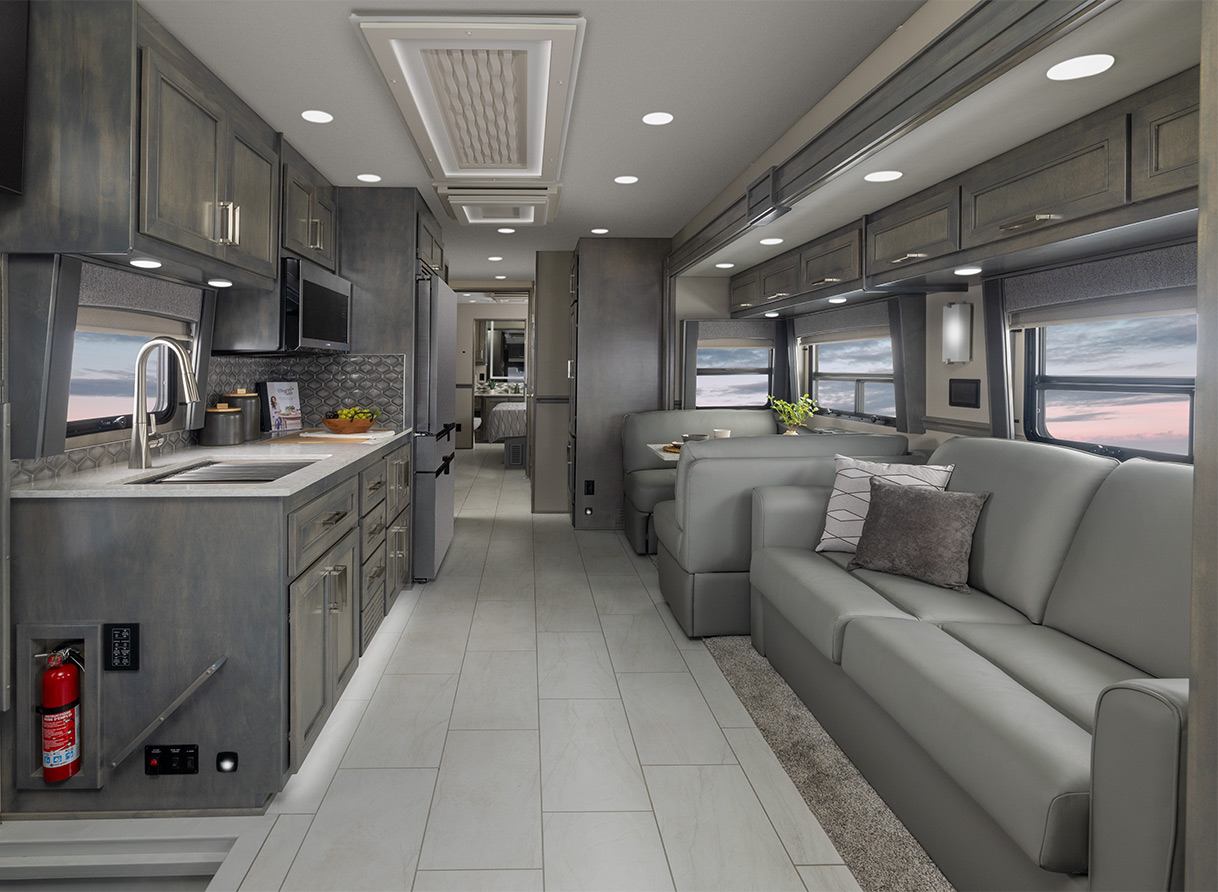

Interior Details

Rockport Cabinetry // Retreat Interior Décor // The driver and passenger seats can be turned around to provide additional seating.

Rockport Cabinetry // Retreat Interior Décor // The Renegade XL gives you the ability to travel in style with all the comforts of home.

Rockport Cabinetry // Retreat Interior Décor // Prepare your favorite meals on the road in this functional kitchen.

Rockport Cabinetry // Retreat Interior Décor // The bedroom comes with a memory foam mattress, lots of storage and a 43” 4k Smart LED TV.

Rockport Cabinetry // Retreat Interior Décor // The bunks make the 2024 XL a great RV for families!

Rockport Cabinetry // Retreat Interior Décor // The bathroom features a solid surface shower with an accent tile wall, floor inlay, an integrated niche and a sliding glass door.

Rockport Cabinetry // Retreat Interior Décor // Drive with ease and peace of mind thanks to features like the 360° camera system with back-up and side view features.

Rockport Cabinetry // Retreat Interior Décor // Relax in your comfortable Mastrotto® Italian hide leather furniture.

01 / 08

INTERIOR DÉCOR SELECTIONS

Solid Wood Cabinetry Options Swatch — Cape Cod

BUILT BY THE BOLD, FOR THE BOLD

We became one of the world’s top motorhome brands by building extraordinary coaches. We remain the industry rebels by continuously challenging the status quo in terms of quality, value, power, versatility, durability and style. Starting with the best chassis, and ending with a motorhome that outperforms and outlasts – Renegade RVs are designed for extreme luxury and extreme adventure. Renegade RVs are built for you.

Our Construction

Standards & Options

	40BBC \| 40DBM \| 40QS	43DB
Overall Exterior Length	44’ 11”	43’ 6”
Exterior Width	99.25″	99.25”
Overall Exterior Height (Includes 15,000 BTU Roof Air Conditioners)	13’ 6”	13’ 6”
Interior Height	90″	90”
Fuel Tank Capacity	120 Gallons	120 Gallons
Fresh Water	150 Gallons	150 Gallons
Gray Water	75 Gallons	75 Gallons
Black Water	75 Gallons	75 Gallons

CHASSIS AND CAB

EXTERIOR FEATURES

CONSTRUCTION

PLUMBING SYSTEMS

INTERIOR FEATURES

BATH

APPLIANCES

ELECTRICAL SYSTEMS

ENTERTAINMENT SYSTEMS

POPULAR OPTIONS

Freightliner® Cascadia 126 Tandem Axle
Detroit® DD16 Engine with 600HP, 1850 ft. lb. Torque
58,000 lbs. GVWR
Allison® TRV4000 Electronic 6-Speed Transmission or Detroit® DT12 12-Speed Transmission
30,000 lb. Towing Capacity
Single 120-Gallon Aluminum Fuel Tank
13-Gallon DEF Tank
Polished Aluminum Wheels with Center Caps
Airliner® Rear Air Suspension

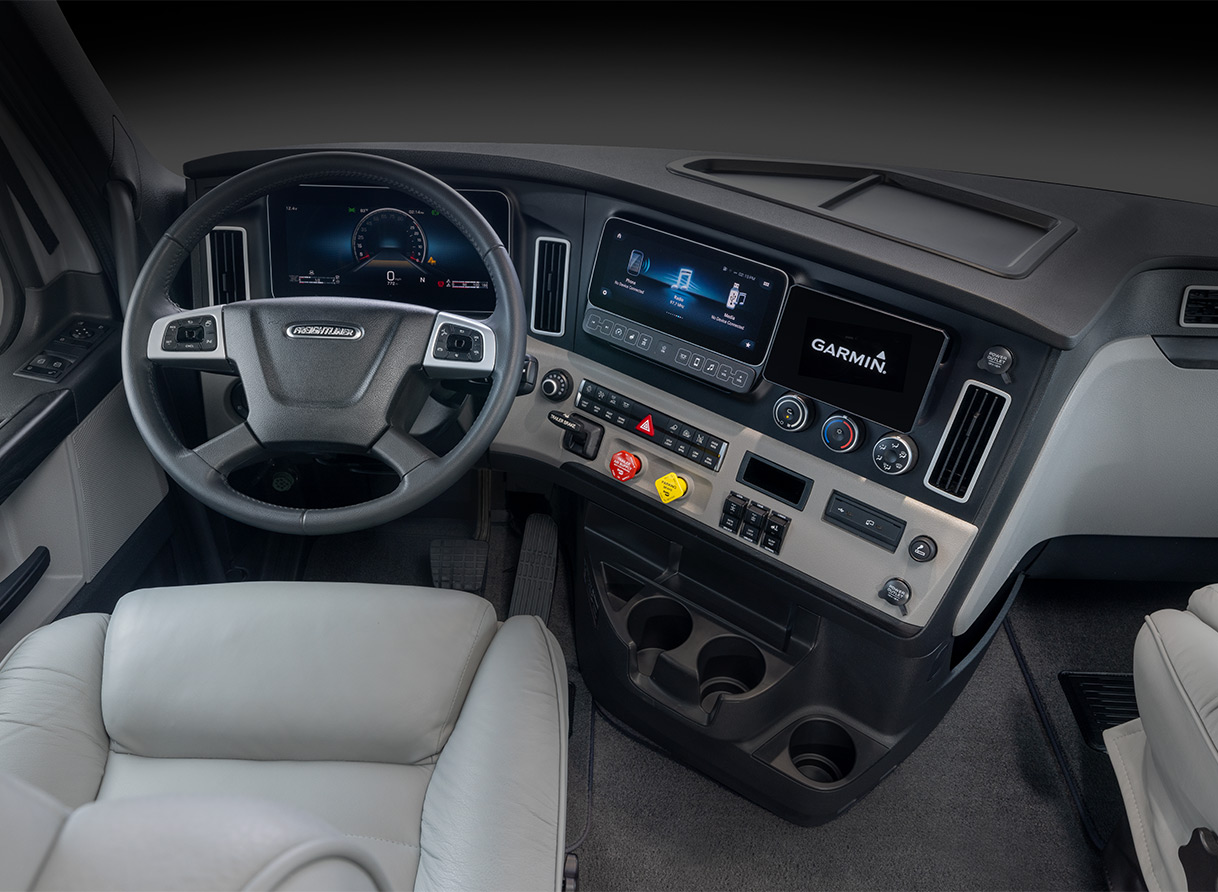

Digital Dash Cluster and 10″ Infotainment System with AM-FM Radio, Bluetooth, Apple® Carplay™ and Android® Auto™ Compatible
360° Camera System with Back-Up and Side View Features
Upgraded Cab Sound System
- Amplified Cab Speakers
- Powered 8″ Subwoofer
Premium Freightliner® Sound and Thermal Insulation Package
LED Headlight with Bumper Integrated Fog Lights
Power Windows and Door Locks
Power/Heated Remote-Control Mirrors
Air Ride Driver and Passenger Seat Pedestals with Swivels
Leather Driver/Passenger Seats with Armrests
Full Cab Mat
Auxiliary Air Chuck and Hose
Freightliner® Safety Assurance Package:
- Collision Mitigation
- Adaptive Cruise Control
- Lane Departure Warning
- Detroit® Connect Safety Event Viewer Package

Aerodynamic Fiberglass Front and Rear Caps and Transition
Four-Point Hydraulic Leveling System with App
Lighted Exterior Entry Door Assist Handle
Keyless Entry
Powered Sliding Double Entry Steps
(7) Colorway Paint Options
Dual, Roof Mounted Girard® 2-Stage Lateral Arm Awning with LED Lights Integrated into Front and Rear Fiberglass Caps
Slide Toppers
Frameless Dual-Pane Tinted Windows with Screens
Power Locking, Side-Swing Aluminum Compartment Doors with Single Handle Paddle Latches and Double Catch
Steel Storage Compartments with Highly Durable Bed Liner Surface
Diamond Shield™ Nano Fusion Paint Protection Film – Front Mask
Full-Width Rock Guard Mud Flap

2” Vacuum Laminated Sidewalls with Welded Aluminum Framing
1.5” High Density Foam Insulation in Sidewalls and Roof
Welded Aluminum Roof Truss System and Framed Wall Cutouts with Framed Cutouts
“Super Sandwich” Floor Construction with Composite Underbelly Includes:
- 2” Welded Steel Floor Joist System Mounted to (6” and 1.5″) Steel Longitudinal Floor Beams
- 3/4” Fir Plywood Deck Over 2 x 4 Wood-Framed Residential Floor with Thermal and Sound Deadening Insulation

150 Gallon Fresh Water Tank
75 Gallon Gray Tank
75 Gallon Black Tank
See-Level® Tank Monitoring System
Full Maintenance Wet Bay
- Black Tank Flush System
- Fresh Water Fill – City Water Hookup
- Outside Faucet with Sprayer
On Demand Water Pump
Whole House Water Filtration System

(3) Interior Décor Options
Décor Coordinating Wood Valances with Fabric Accents
Double Roller Powered Day/Manual Night Shades
Soft Touch Padded Walls and Ceiling
12” x 24” Porcelain Tile Flooring Throughout
Maple Hardwood Cabinetry
4-Wood Stain Color Options, 2-Finish Options
Dovetail Drawers on Soft Closing Slides
Framed Doors on Hidden Hinges
Pantry
Hardwood Slide Fascia with Lighting
Decorative Ceiling Treatment with Lighting
Satin Nickel Door Hardware
Satin Nickel Kitchen Faucet
Cambria® Quartz Countertops Throughout
Rectangular Single Bowl Undermount Kitchen Sink with Cover
Accent Lighting at Countertops and Toe Kicks
Grouted Tile Backsplash
LED Lighting
Memory Foam Mattress

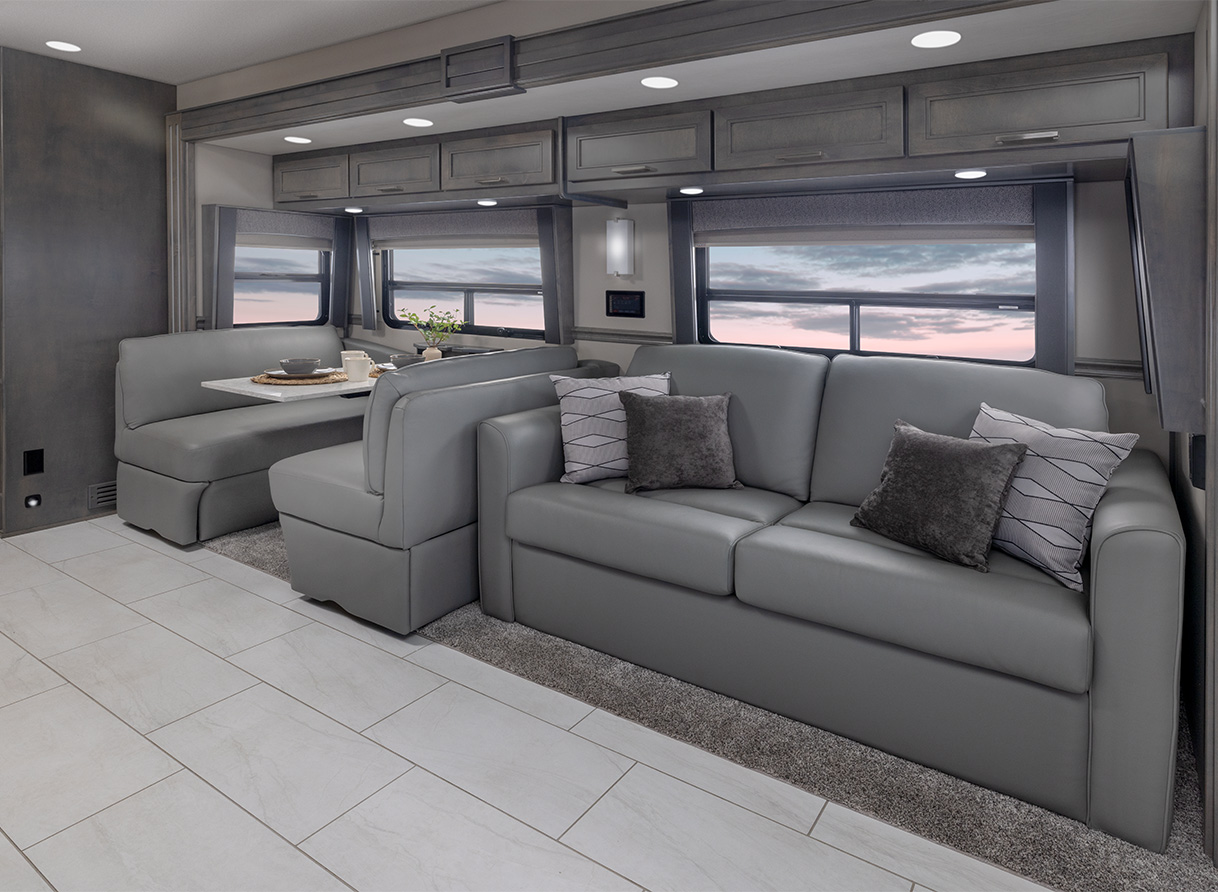

Mastrotto® Italian Hide Leather Furniture
Booth Dinette
Sofa Sleeper, Hide-a-Bed
Storage Loveseat (45DBM and 45QS Only)
Aerocap with Storage Cabinet

Maple Hardwood Vanity, Medicine and Linen Storage Cabinets
LED Lighted Vanity Mirror
Deluxe Satin Nickel Bath Faucet and Rain Shower Assembly with Body Sprayers
Satin Nickel Towel Bar, Towel Ring and Toilet Paper Holder
Porcelain Macerator Toilet with Push Button Flush
Cambria® Quartz Countertop with Solid Surface Integrated Sink
Solid Surface Shower with Wall Tile and Floor Inlay and Sliding Glass Door

23 cu. ft. Samsung Bespoke® Refrigerator with Family Hub
Recessed 2-Burner Electric Induction Cooktop with Butcher Block Covers
1.7 cu. ft. Black Stainless Convection Microwave Oven
Aqua-Hot® 600D Hydronic Water and Zone Heating System
(3) 15,000 BTU Roof A/C with Heat Pumps and Plumbed Condensation Lines
Ducted Air Conditioning
MaxxAir® Deluxe Power Vents
Pre-Wired and Plumbed for Optional Washer/Dryer
Carbon Monoxide, LP and Smoke Detectors and Fire Extinguisher

12.5KW Onan® quiet diesel generator
Automatic generator start system
50-Amp Electrical Panel
Dual 3,000w True Sine Wave Inverters
Transfer Switch with Surge Protection
(2) 330ah AGM House Battery
Solar Charging System Pre-Wire
Multiplex Control System with WiFi App Control
USB/USB-C Charging in Living Area, Bedroom, Kitchen and BunkAreas
50-Amp Power Retractable Shore Cord Reel
12V Holding Tank Heaters, Grey and Black Tanks

50” 4K Smart LED TV in Living Area
Bose® Soundbar Home Theatre System with Bluetooth Streaming and Wireless Subwoofer in Living Area
43” 4K Smart LED TV and Bose Soundbar in Bedroom
Exterior Entertainment Center
- 43” Smart LED TV on Swivel
- Soundbar with Bluetooth Streaming
- USB Charging
WifiRanger® Converge™ HD Rooftop OTA Antenna with WiFi Booster and 4G Ready
Winegard® In-Motion Satellite System
Winegard® Trav’ler Stationary HD Satellite System
Premium Rooftop Cell Booster

Reclining Theatre Seat in lieu of Standard Sofa
High Gloss Cabinet Finish
Floor Heat Throughout
600w Solar Panel System (3 @ 200w)
(2) 270AH High-Capacity Lithium Batteries in lieu of AGM Batteries
Additional 270AH High-Capacity Lithium Battery (Limit 2)
Freightliner® Blackout Package – Grille, Bezel, Mirrors and Wheels
Washer and Dryer Stack
Central Vacuum System
Premium Exterior Refrigerator/Freezer on Slide Tray
Holding Tank Sewage Macerator System

CHASSIS AND CAB

Freightliner® Cascadia 126 Tandem Axle
Detroit® DD16 Engine with 600HP, 1850 ft. lb. Torque
58,000 lbs. GVWR
Allison® TRV4000 Electronic 6-Speed Transmission or Detroit® DT12 12-Speed Transmission
30,000 lb. Towing Capacity
Single 120-Gallon Aluminum Fuel Tank
13-Gallon DEF Tank
Polished Aluminum Wheels with Center Caps
Airliner® Rear Air Suspension
Digital Dash Cluster and 10″ Infotainment System with AM-FM Radio, Bluetooth, Apple® Carplay™ and Android® Auto™ Compatible
360° Camera System with Back-Up and Side View Features
Upgraded Cab Sound System
- Amplified Cab Speakers
- Powered 8″ Subwoofer
Premium Freightliner® Sound and Thermal Insulation Package
LED Headlight with Bumper Integrated Fog Lights
Power Windows and Door Locks
Power/Heated Remote-Control Mirrors
Air Ride Driver and Passenger Seat Pedestals with Swivels
Leather Driver/Passenger Seats with Armrests
Full Cab Mat
Auxiliary Air Chuck and Hose
Freightliner® Safety Assurance Package:
- Collision Mitigation
- Adaptive Cruise Control
- Lane Departure Warning
- Detroit® Connect Safety Event Viewer Package

EXTERIOR FEATURES

Aerodynamic Fiberglass Front and Rear Caps and Transition
Four-Point Hydraulic Leveling System with App
Lighted Exterior Entry Door Assist Handle
Keyless Entry
Powered Sliding Double Entry Steps
(7) Colorway Paint Options
Dual, Roof Mounted Girard® 2-Stage Lateral Arm Awning with LED Lights Integrated into Front and Rear Fiberglass Caps
Slide Toppers
Frameless Dual-Pane Tinted Windows with Screens
Power Locking, Side-Swing Aluminum Compartment Doors with Single Handle Paddle Latches and Double Catch
Steel Storage Compartments with Highly Durable Bed Liner Surface
Diamond Shield™ Nano Fusion Paint Protection Film – Front Mask
Full-Width Rock Guard Mud Flap

CONSTRUCTION

2” Vacuum Laminated Sidewalls with Welded Aluminum Framing
1.5” High Density Foam Insulation in Sidewalls and Roof
Welded Aluminum Roof Truss System and Framed Wall Cutouts with Framed Cutouts
“Super Sandwich” Floor Construction with Composite Underbelly Includes:
- 2” Welded Steel Floor Joist System Mounted to (6” and 1.5″) Steel Longitudinal Floor Beams
- 3/4” Fir Plywood Deck Over 2 x 4 Wood-Framed Residential Floor with Thermal and Sound Deadening Insulation

PLUMBING SYSTEMS

150 Gallon Fresh Water Tank
75 Gallon Gray Tank
75 Gallon Black Tank
See-Level® Tank Monitoring System
Full Maintenance Wet Bay
- Black Tank Flush System
- Fresh Water Fill – City Water Hookup
- Outside Faucet with Sprayer
On Demand Water Pump
Whole House Water Filtration System

INTERIOR FEATURES

(3) Interior Décor Options
Décor Coordinating Wood Valances with Fabric Accents
Double Roller Powered Day/Manual Night Shades
Soft Touch Padded Walls and Ceiling
12” x 24” Porcelain Tile Flooring Throughout
Maple Hardwood Cabinetry
4-Wood Stain Color Options, 2-Finish Options
Dovetail Drawers on Soft Closing Slides
Framed Doors on Hidden Hinges
Pantry
Hardwood Slide Fascia with Lighting
Decorative Ceiling Treatment with Lighting
Satin Nickel Door Hardware
Satin Nickel Kitchen Faucet
Cambria® Quartz Countertops Throughout
Rectangular Single Bowl Undermount Kitchen Sink with Cover
Accent Lighting at Countertops and Toe Kicks
Grouted Tile Backsplash
LED Lighting
Memory Foam Mattress
Mastrotto® Italian Hide Leather Furniture
Booth Dinette
Sofa Sleeper, Hide-a-Bed
Storage Loveseat (45DBM and 45QS Only)
Aerocap with Storage Cabinet

BATH

Maple Hardwood Vanity, Medicine and Linen Storage Cabinets
LED Lighted Vanity Mirror
Deluxe Satin Nickel Bath Faucet and Rain Shower Assembly with Body Sprayers
Satin Nickel Towel Bar, Towel Ring and Toilet Paper Holder
Porcelain Macerator Toilet with Push Button Flush
Cambria® Quartz Countertop with Solid Surface Integrated Sink
Solid Surface Shower with Wall Tile and Floor Inlay and Sliding Glass Door

APPLIANCES

23 cu. ft. Samsung Bespoke® Refrigerator with Family Hub
Recessed 2-Burner Electric Induction Cooktop with Butcher Block Covers
1.7 cu. ft. Black Stainless Convection Microwave Oven
Aqua-Hot® 600D Hydronic Water and Zone Heating System
(3) 15,000 BTU Roof A/C with Heat Pumps and Plumbed Condensation Lines
Ducted Air Conditioning
MaxxAir® Deluxe Power Vents
Pre-Wired and Plumbed for Optional Washer/Dryer
Carbon Monoxide, LP and Smoke Detectors and Fire Extinguisher

ELECTRICAL SYSTEMS

12.5KW Onan® quiet diesel generator
Automatic generator start system
50-Amp Electrical Panel
Dual 3,000w True Sine Wave Inverters
Transfer Switch with Surge Protection
(2) 330ah AGM House Battery
Solar Charging System Pre-Wire
Multiplex Control System with WiFi App Control
USB/USB-C Charging in Living Area, Bedroom, Kitchen and BunkAreas
50-Amp Power Retractable Shore Cord Reel
12V Holding Tank Heaters, Grey and Black Tanks

ENTERTAINMENT SYSTEMS

50” 4K Smart LED TV in Living Area
Bose® Soundbar Home Theatre System with Bluetooth Streaming and Wireless Subwoofer in Living Area
43” 4K Smart LED TV and Bose Soundbar in Bedroom
Exterior Entertainment Center
- 43” Smart LED TV on Swivel
- Soundbar with Bluetooth Streaming
- USB Charging
WifiRanger® Converge™ HD Rooftop OTA Antenna with WiFi Booster and 4G Ready
Winegard® In-Motion Satellite System
Winegard® Trav’ler Stationary HD Satellite System
Premium Rooftop Cell Booster

POPULAR OPTIONS

Reclining Theatre Seat in lieu of Standard Sofa
High Gloss Cabinet Finish
Floor Heat Throughout
600w Solar Panel System (3 @ 200w)
(2) 270AH High-Capacity Lithium Batteries in lieu of AGM Batteries
Additional 270AH High-Capacity Lithium Battery (Limit 2)
Freightliner® Blackout Package – Grille, Bezel, Mirrors and Wheels
Washer and Dryer Stack
Central Vacuum System
Premium Exterior Refrigerator/Freezer on Slide Tray
Holding Tank Sewage Macerator System

THE RENEGADE RV WARRANTY

New Renegade motorhomes are covered by a 1-year unlimited miles limited warranty, plus a 3-year 36,000-mile limited structural warranty.

All Renegade motorhome chassis, engines and transmissions, and drivetrain warranties are provided and administered by their respective manufacturers.

For specific information about these warranties, ask your dealer or contact Renegade RV.

Learn More

2024 XL

Renegade XL featured on Autoevolution

Length

Towing Capacity

Bathrooms

ECLIPSE

MERIDIAN

NEBULA

SOLSTICE

ZENITH

POLARIS

TUNDRA

X43DB

X45BBC

X45DBM

X45QS

INTERIOR DÉCOR SELECTIONS

Brunswick Décor

Backsplash

Bedspread

Countertop

Flooring

Furniture

Sofa Pillows

Valance Accent

Valance

Charleston Décor

Backsplash

Bedspread

Countertop

Flooring

Furniture

Sofa Pillows

Valance Accent

Valance

Harbor Décor

Backsplash

Bedspread

Countertop

Flooring

Furniture

Sofa Pillows

Valance Accent

Valance

Solid Wood Cabinetry Options

Cape Cod

Lakewood

Rockport

BUILT BY THE BOLD, FOR THE BOLD

2024 Verona LE

2024 Explorer

2024 Classic
