2027 Renegade RV Explorer | Super C Motorhome

MORE ADVANCED THAN EVER

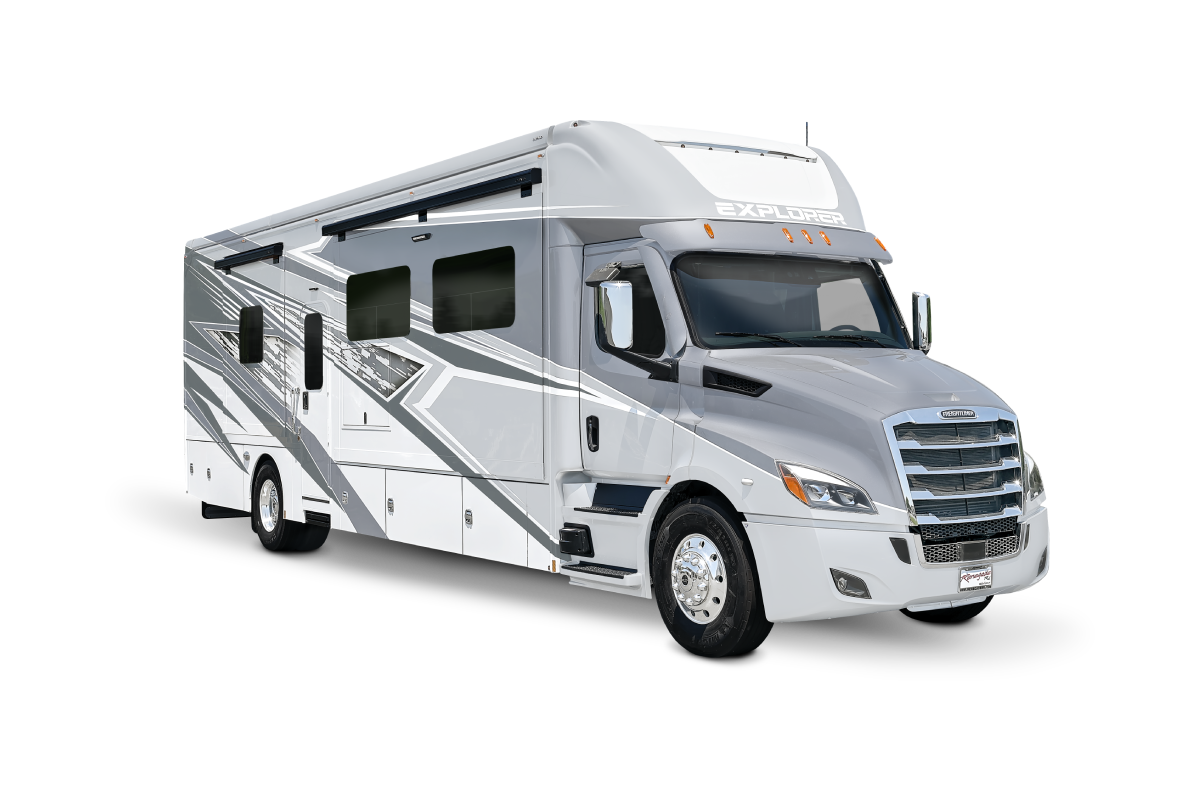

Elevated craftsmanship and innovative design unite to create Renegade RV’s 2027 Explorer, a Super C diesel RV. The Explorer features an Allison transmission and a 525-HP engine. Whatever adventure lies ahead, the Explorer will give you the driving power you need to get you to your destination safely and comfortably. The Explorer’s interior is beautifully designed to include tile floors, hardwood residential-style cabinets, kitchen and bathroom tile backsplashes.

Length

38' 5"- 40' 6"

Towing Capacity

20,000 lbs

Bathrooms

1-1.5

View All Specs

Download Brochure

Exterior Paint Options

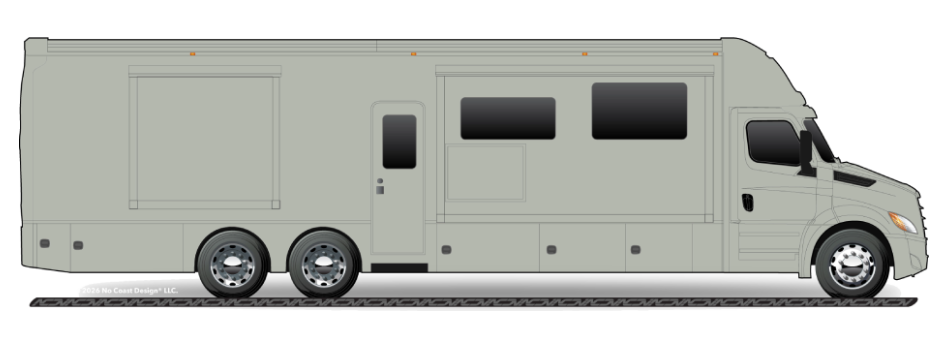

ATLAS LR

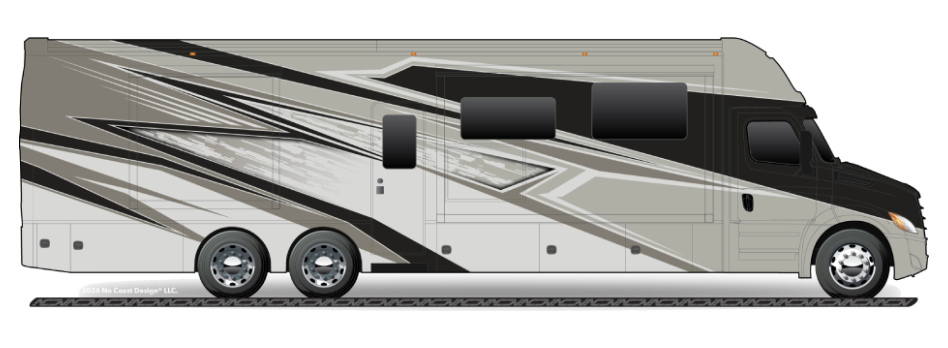

ELEVATION

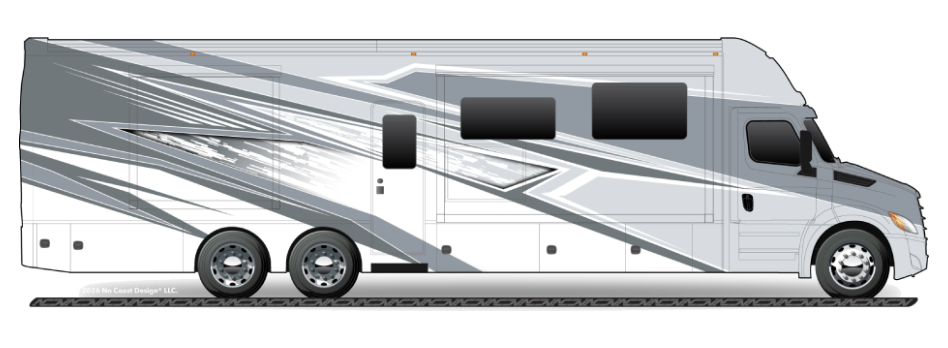

HEMISPHERE

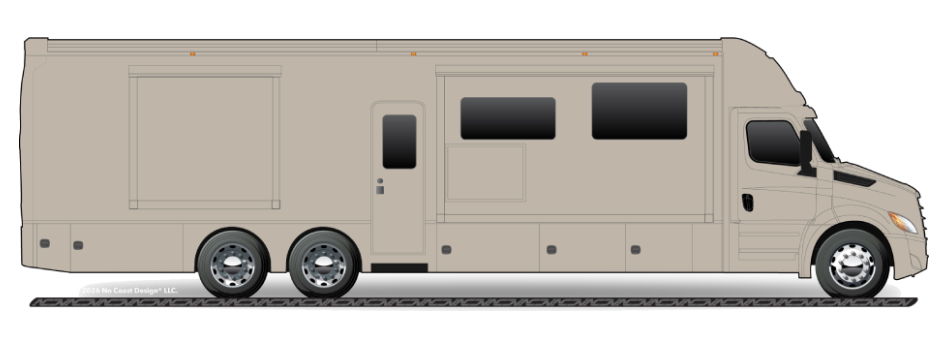

MOJAVE

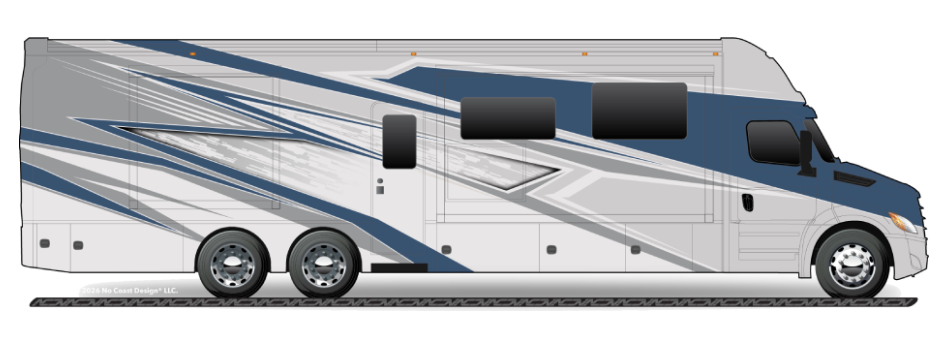

NAUTICA

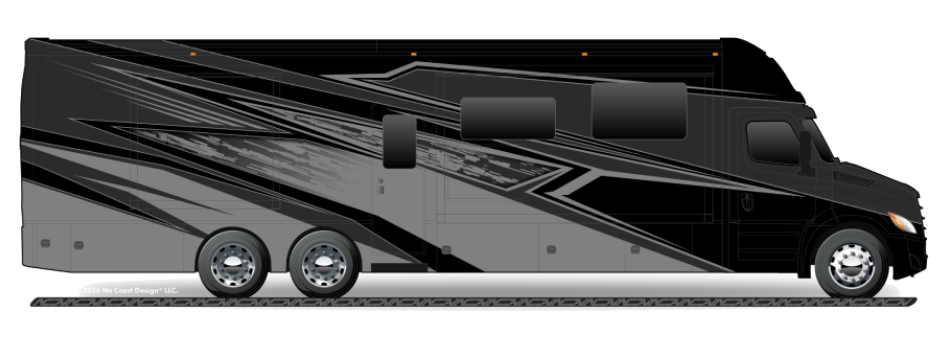

NIGHTFALL

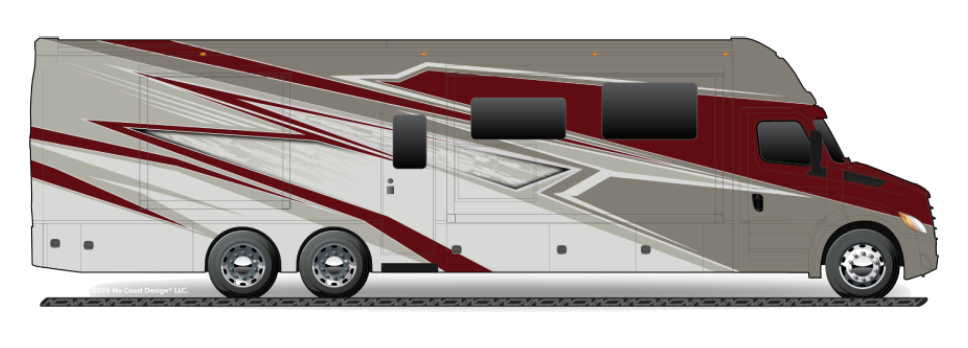

POLE STAR

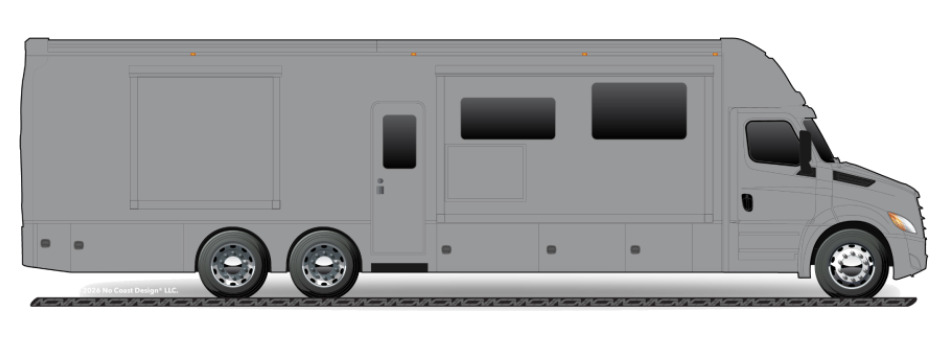

POLARIS

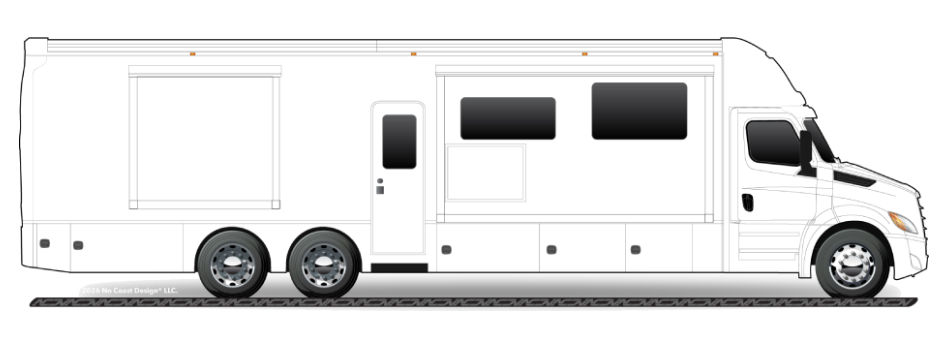

TUNDRA

ATLAS LR

ELEVATION

HEMISPHERE

MOJAVE

NAUTICA

NIGHTFALL

POLE STAR

POLARIS

TUNDRA

ATLAS LR

ELEVATION

HEMISPHERE

MOJAVE

NAUTICA

NIGHTFALL

POLE STAR

POLARIS

TUNDRA

Available Floorplans

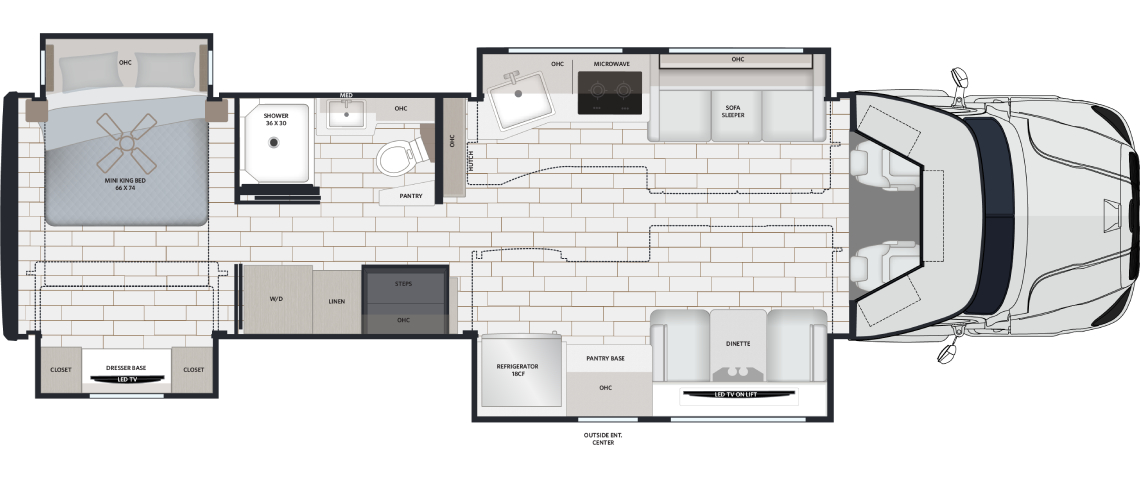

38EMB

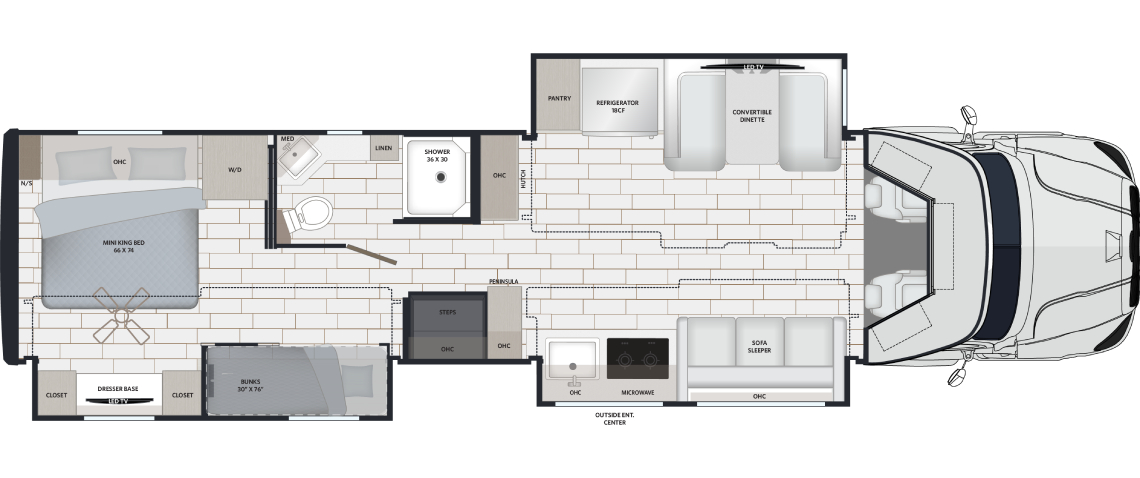

40EBH

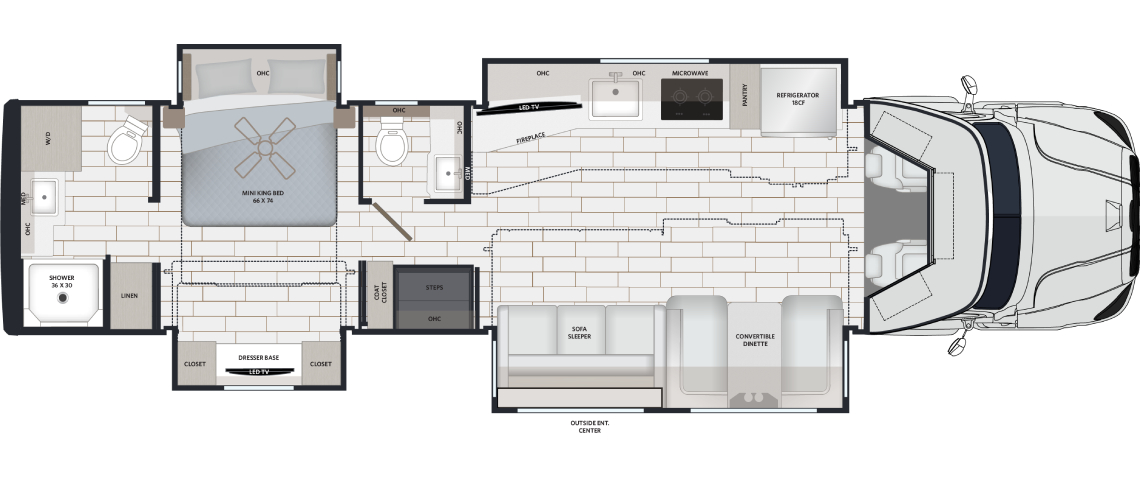

40ERB

Interior Details

INTERIOR DÉCOR SELECTIONS

Solid Wood Cabinetry Options Swatch — Cape Cod

BUILT BY THE BOLD, FOR THE BOLD

We became one of the world’s top motorhome brands by building extraordinary coaches. We remain the industry rebels by continuously challenging the status quo in terms of quality, value, power, versatility, durability and style. Starting with the best chassis, and ending with a motorhome that outperforms and outlasts – Renegade RVs are designed for extreme luxury and extreme adventure. Renegade RVs are built for you.

Our Construction

Standards & Options

	38EMB	40ERB \| 40EBH
Overall Length Cascadia/Peterbilt	38’ 5”	40’ 4”/40’ 10”
Overall Height	13’1”	13’1”
Overall Width*	99.25”	99.25”
Interior Height*	84”	84”
Interior Width*	95.5”	95.5”
Fresh Water Capacity (gal)	150	150
Gray Water Capacity (gal)	75	75
Black Water Capacity (gal)	75	75

CHASSIS AND CAB

EXTERIOR FEATURES

CONSTRUCTION

PLUMBING SYSTEMS

INTERIOR FEATURES

APPLIANCES

ELECTRIC & ENTERTAINMENT

POPULAR OPTIONS

Freightliner® Cascadia 116 single axle
Detroit DD13, 525 HP, 1,850 lb.-ft. of torque, DT12 transmission
Peterbilt® 567 single axle (N/A 38EMB)
Cummins X15, 500 HP, 1,650 lb.-ft. torque, Endurant transmission
20,000 lbs. towing capacity
2-Years towing (Freightliner® only)
$1,200 cap per claim/unlimited miles
Premium chassis package (Freightliner® only)
Digital Dash Cluster and 10” Infotainment System with AM-FM Radio, Bluetooth, Apple® Carplay™, and Android® Auto™, and Side View Cameras on Separate Monitor from Infotainment, Upgraded Cab Sound System (Amplified Cab Speakers & Powered 8” Subwoofer)

Keyless entry lighted exterior entry door assist handle
Roof-mounted Girard® Vision automatic w/motion sensor & LED lights
Four-point hydraulic leveling with app
Power locking side-swing aluminum compartment doors
Includes single handle paddle latches, double catch, and steel storage compartments lined with carpet and motion activated lighting
Diamond Shield® anti chip paint protection
HD shocks suspension upgrade

Vacuum-bonded laminated walls for lasting strength
Welded aluminum roof truss construction, vacuum-bond laminated, with a seamless crowned fiberglass exterior
Enhanced floor construction with composite underbelly

Whole house water filtration system with accumulator tank (consistant pressure in water lines)
SeeLevel® tank monitoring system
Electric dump valves with manual over ride
Dual 12V tank heaters on both gray and black tanks
Full maintenance wet bay with black tank flush, fresh water fill, hot/cold outside faucet with sprayer and power hose reel

Soft touch padded walls and ceiling
12”x 24” porcelain tile flooring throughout
Dovetail drawers on soft close glides
Pantry with push release pull out drawers
Solid maple custom cabinetry throughout
LED dimmable lighting
Memory foam mattress
Convertible booth dinette with storage (N/A on 38EMB)
Sofa Bed (hide-a-bed)

18 cu. ft., French door stainless steel refrigerator with ice maker
Recessed 2-burner induction cooktop with solid surface covers
1.7 cu. ft. stainless steel convection microwave oven
Aqua-Hot® 450D zoned hydronic heating and continuous hot water, plus engine pre-heat
(2) 15,000 BTU roof A/C units with condensate drain and heat pump
Insulated thermofoil ducted A/C
Central vacuum system with floor sweep feature
MaxxAir® power vents with rain sensors
Powered roof vents that keep your RV fresh, cool, and comfortable.

8kW Onan® quiet diesel generator with automatic generator start (AGS)
3,000W true sine wave inverter
(3) 200W solar panels
Transfer switch with surge protection
(2) 270Ah lithium batteries
Multiplex control system with bluetooth app control
4K smart LED TV in living area with soundbar and subwoofer
Exterior entertainment center
4K Smart LED TV soundbar and articulating arm extension
Camera Monitoring System – 360° w/recording, 10” HD screen, interior TV access, and trailer camera channels
Standard Starlink® with mobility mount

Cascadia Blackout Package
Underbody / Slide-out LED Lights
Exterior LED Scene Lights
Ceramic Cab Driver/Passenger Window Tint w/IR Rejection
(1-2) 270Ah Lithium Battery Upgrade
(1-2) 200W Solar Panel(s)
Additional 3,000W Inverter
Washer & Dryer Stack
Dishwasher
Flo-Jet Waste Tank Macerator
Heated Tile Flooring
Teak Seat in Shower
ShowerMiser Water Mgmt System w/Electronic Sensors
Power Reclining Theatre Seat w/Head Tilt
Cabover Bunk Cap w/Side Transitions, Windshield, Bunk Mat, and storage Bins (Freightliner only)

CHASSIS AND CAB

Freightliner® Cascadia 116 single axle
Detroit DD13, 525 HP, 1,850 lb.-ft. of torque, DT12 transmission
Peterbilt® 567 single axle (N/A 38EMB)
Cummins X15, 500 HP, 1,650 lb.-ft. torque, Endurant transmission
20,000 lbs. towing capacity
2-Years towing (Freightliner® only)
$1,200 cap per claim/unlimited miles
Premium chassis package (Freightliner® only)
Digital Dash Cluster and 10” Infotainment System with AM-FM Radio, Bluetooth, Apple® Carplay™, and Android® Auto™, and Side View Cameras on Separate Monitor from Infotainment, Upgraded Cab Sound System (Amplified Cab Speakers & Powered 8” Subwoofer)

EXTERIOR FEATURES

Keyless entry lighted exterior entry door assist handle
Roof-mounted Girard® Vision automatic w/motion sensor & LED lights
Four-point hydraulic leveling with app
Power locking side-swing aluminum compartment doors
Includes single handle paddle latches, double catch, and steel storage compartments lined with carpet and motion activated lighting
Diamond Shield® anti chip paint protection
HD shocks suspension upgrade

CONSTRUCTION

Vacuum-bonded laminated walls for lasting strength
Welded aluminum roof truss construction, vacuum-bond laminated, with a seamless crowned fiberglass exterior
Enhanced floor construction with composite underbelly

PLUMBING SYSTEMS

Whole house water filtration system with accumulator tank (consistant pressure in water lines)
SeeLevel® tank monitoring system
Electric dump valves with manual over ride
Dual 12V tank heaters on both gray and black tanks
Full maintenance wet bay with black tank flush, fresh water fill, hot/cold outside faucet with sprayer and power hose reel

INTERIOR FEATURES

Soft touch padded walls and ceiling
12”x 24” porcelain tile flooring throughout
Dovetail drawers on soft close glides
Pantry with push release pull out drawers
Solid maple custom cabinetry throughout
LED dimmable lighting
Memory foam mattress
Convertible booth dinette with storage (N/A on 38EMB)
Sofa Bed (hide-a-bed)

APPLIANCES

18 cu. ft., French door stainless steel refrigerator with ice maker
Recessed 2-burner induction cooktop with solid surface covers
1.7 cu. ft. stainless steel convection microwave oven
Aqua-Hot® 450D zoned hydronic heating and continuous hot water, plus engine pre-heat
(2) 15,000 BTU roof A/C units with condensate drain and heat pump
Insulated thermofoil ducted A/C
Central vacuum system with floor sweep feature
MaxxAir® power vents with rain sensors
Powered roof vents that keep your RV fresh, cool, and comfortable.

ELECTRIC & ENTERTAINMENT

8kW Onan® quiet diesel generator with automatic generator start (AGS)
3,000W true sine wave inverter
(3) 200W solar panels
Transfer switch with surge protection
(2) 270Ah lithium batteries
Multiplex control system with bluetooth app control
4K smart LED TV in living area with soundbar and subwoofer
Exterior entertainment center
4K Smart LED TV soundbar and articulating arm extension
Camera Monitoring System – 360° w/recording, 10” HD screen, interior TV access, and trailer camera channels
Standard Starlink® with mobility mount

POPULAR OPTIONS

Cascadia Blackout Package
Underbody / Slide-out LED Lights
Exterior LED Scene Lights
Ceramic Cab Driver/Passenger Window Tint w/IR Rejection
(1-2) 270Ah Lithium Battery Upgrade
(1-2) 200W Solar Panel(s)
Additional 3,000W Inverter
Washer & Dryer Stack
Dishwasher
Flo-Jet Waste Tank Macerator
Heated Tile Flooring
Teak Seat in Shower
ShowerMiser Water Mgmt System w/Electronic Sensors
Power Reclining Theatre Seat w/Head Tilt
Cabover Bunk Cap w/Side Transitions, Windshield, Bunk Mat, and storage Bins (Freightliner only)

THE RENEGADE RV WARRANTY

New Renegade motorhomes are covered by a 1-year unlimited miles limited warranty, plus a 3-year 36,000-mile limited structural warranty.

All Renegade motorhome chassis, engines and transmissions, and drivetrain warranties are provided and administered by their respective manufacturers.

For specific information about these warranties, ask your dealer or contact Renegade RV.
